The Southbend S36D combines a six-burner cooktop with a full-size oven in a compact 36-inch footprint. Built with a stainless steel front and floor-standing design, this natural gas range delivers 186,000 BTU across its cooking surfaces. The included oven rack and medium-duty construction make it suitable for restaurants, cafeterias, and institutional kitchens where space efficiency and reliable performance are priorities.
At 380 pounds and measuring 36 inches wide by 31 inches deep by 37 inches high, the S36D requires adequate floor support and proper clearances for ventilation and service access. The oven operates within a 200 to 500 °F temperature range, providing flexibility for baking, roasting, and holding applications. Natural gas connection and appropriate hood ventilation are required for installation.
The unit is covered by a 1-year parts warranty. Line cooks will appreciate the straightforward six-burner layout for multi-task cooking during service hours. The stainless front construction resists corrosion and simplifies daily cleaning, while the standard capacity oven accommodates full-size sheet pans and hotel pans for batch cooking or finishing work.
Metrics
| Width | 36 in |
|---|---|
| Depth | 31 in |
| Weight | 380 lb |
| Height | 37 in |
Descriptors
| Brand | Southbend |
|---|---|
| Power Type | Gas |
| Duty Class | Medium |
| Form Factor | Floor |
| Capacity Class | Standard |
| Model Number | S36D |
| Dimensions | 36 × 31 × 37 in |
| Capacity | 6 burners + oven |
| Power Spec | 186000 BTU |
| Voltage / Phase | Natural gas |
| Construction | Stainless front |
| Temperature Range | 200–500 °F oven |
| Warranty Term | 1 year parts |
| Included Accessories | Oven rack |
Frequently asked questions
What are the dimensions and weight of the Southbend S36D?
The Southbend S36D measures 36 inches wide, 31 inches deep, and 37 inches tall. It weighs 380 pounds, so adequate floor support is necessary during installation. Spec sheets list 36×31×37 in and 380 lb.
What is the BTU output and oven temperature range?
According to published specifications, the S36D delivers 186,000 BTU total output across its six burners and oven. The oven operates in a temperature range of 200 to 500 °F. Published figures put capacity at 6 burners + oven.
What type of gas does this range use?
The Southbend S36D is configured for natural gas. Verify gas supply compatibility and local code requirements before installation.
Related in this catalog
-

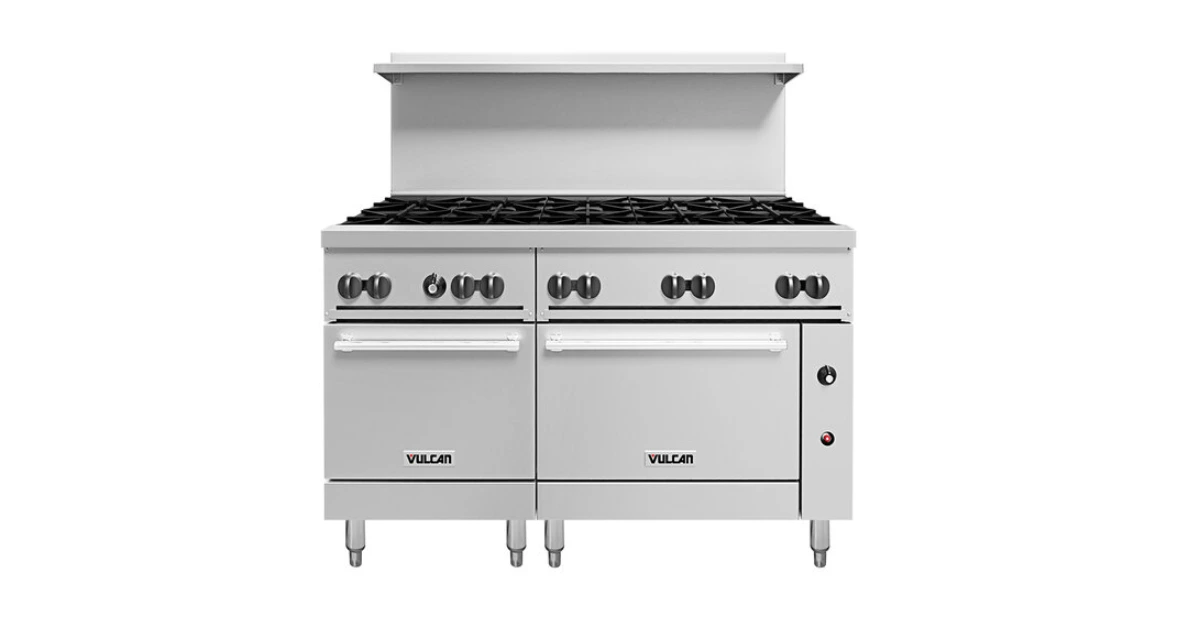

Vulcan 60T-101 10-Burner Gas Range
The Vulcan 60T-101 is a heavy-duty 10-burner gas range with an integrated oven, designed for high-volume commercial kitchens. This 60-inch floor model delivers 310,000 BTU total output across its open burners and oven cavity. Built with stainless steel front construction and weighing 520 pounds, it combines durability with the capacity needed for busy restaurant operations.
-

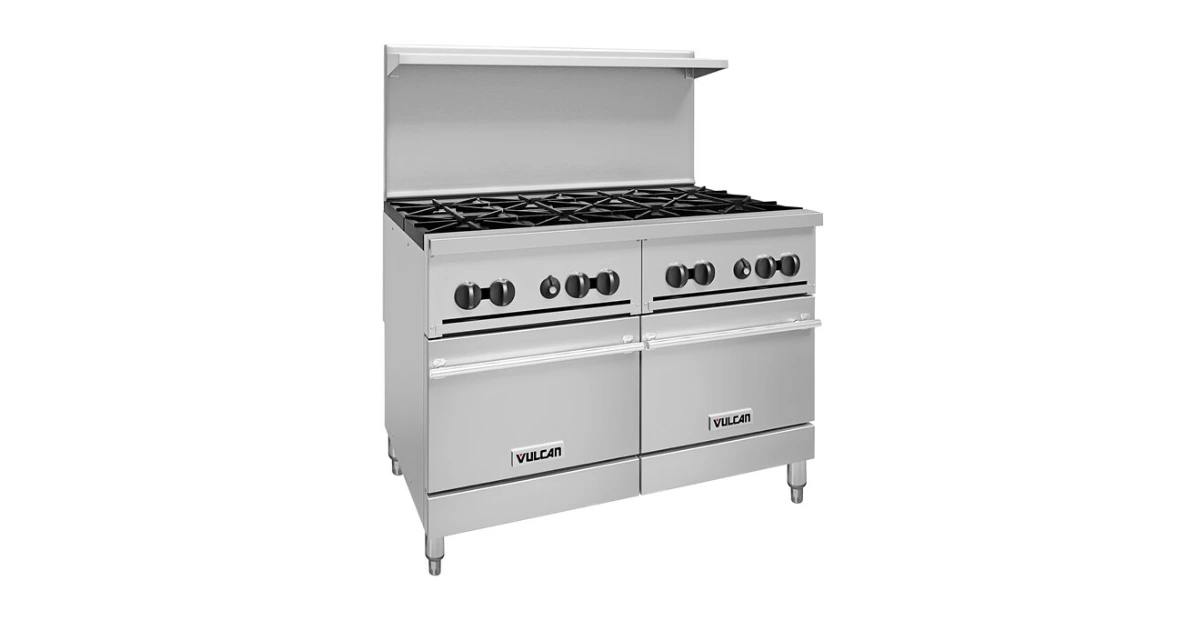

Vulcan 48T-101 8-Burner Gas Range
