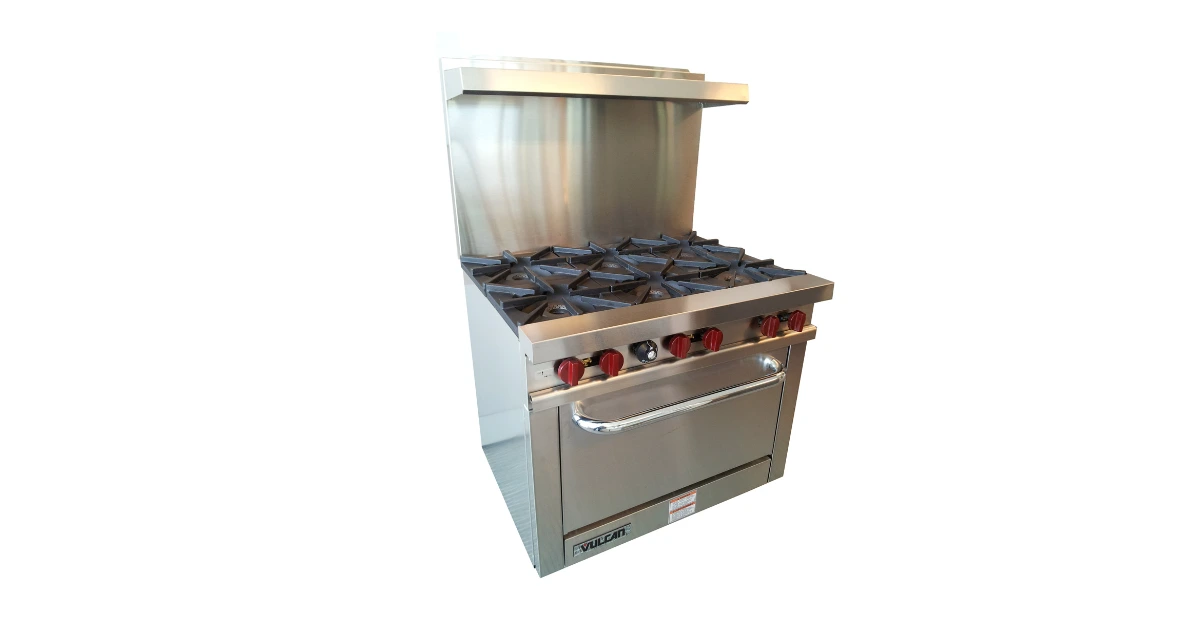

The Vulcan V36G combines six open burners with a full-size oven in a compact 36-inch footprint. Constructed with a stainless steel front, this medium-duty gas range is built to handle daily service in restaurants, cafeterias, and institutional kitchens. The unit operates on natural gas and delivers 178,000 BTU across all burners and oven, providing flexible cooking capacity for varied menu requirements.
The oven compartment offers a working temperature range of 200-500 °F and includes one oven rack as standard equipment. At 31 inches deep and 37 inches high, the V36G fits standard commercial kitchen layouts while the 365-pound weight ensures stability during operation. Installation requires a natural gas connection and adequate clearance for combustion air and service access on all sides.
Vulcan backs the V36G with a 1-year parts warranty. The range is designed for medium-duty use, making it suitable for operations with moderate volume demands. Kitchen planners should verify local gas pressure, ventilation requirements, and floor load capacity before installation, as with any commercial gas cooking appliance.
Metrics
| Width | 36 in |
|---|---|
| Depth | 31 in |
| Weight | 365 lb |
| Height | 37 in |
Descriptors
| Brand | Vulcan |
|---|---|
| Power Type | Gas |
| Duty Class | Medium |
| Form Factor | Floor |
| Capacity Class | Standard |
| Model Number | V36G |
| Dimensions | 36 × 31 × 37 in |
| Capacity | 6 burners + oven |
| Power Spec | 178000 BTU |
| Voltage / Phase | Natural gas |
| Construction | Stainless front |
| Temperature Range | 200–500 °F oven |
| Warranty Term | 1 year parts |
| Included Accessories | Oven rack |
Frequently asked questions
What are the dimensions and weight of the Vulcan V36G?
The Vulcan V36G measures 36 inches wide, 31 inches deep, and 37 inches high. According to published specifications, the unit weighs 365 pounds.
What is the BTU output and oven temperature range?
The V36G delivers a total of 178,000 BTU across its six burners and oven. The oven operates in a temperature range of 200-500 °F, suitable for baking, roasting, and holding applications. Published figures put capacity at 6 burners + oven.
What type of gas does this range use?
The Vulcan V36G is configured for natural gas. Spec sheets indicate the unit requires a natural gas supply; conversion kits or LP configurations should be confirmed with the manufacturer if needed.
Related in this catalog
-
Imperial IR-6-C 36-Inch Gas Range
The Imperial IR-6-C is a 36-inch gas range designed for medium-duty commercial kitchen use. This floor-standing unit features six burners plus a convection oven with a temperature range of 200 to 500 degrees Fahrenheit. With a total output of 180,000 BTU and stainless steel front construction, it measures 36 inches wide, 31 inches deep, and 37 inches high, weighing 375 pounds.
-
Garland U-36-6G 6-Burner Gas Range
The Garland U-36-6G is a 36-inch medium-duty gas range with six burners and a standard oven. Delivering 175,000 BTU total output, this floor-mounted unit features stainless steel front construction and an oven temperature range of 200-500 °F. Weighing 370 lb and measuring 31 inches deep by 37 inches high, it includes one oven rack and is backed by a 1-year parts warranty.
-

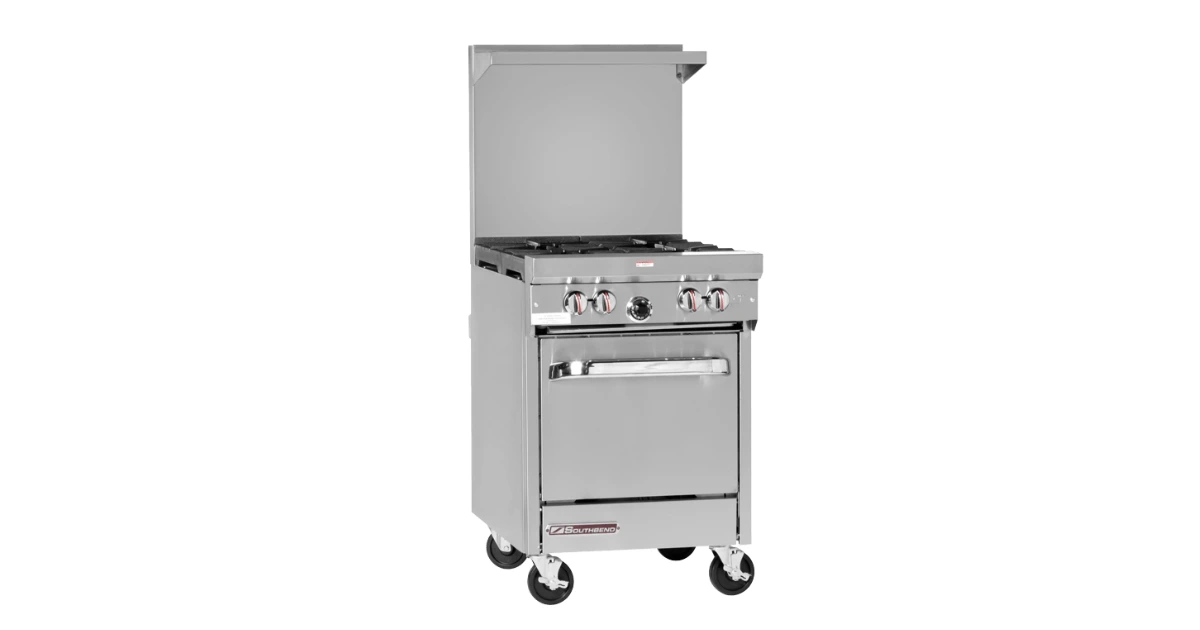

Southbend S24D 24-Inch Gas Range
