The Vulcan V60EP electric range combines a 10-burner cooktop with an integrated oven in a 60-inch footprint, making it suitable for restaurants, hotels, and institutional kitchens that need multiple cooking zones in a single unit. The stainless steel front construction provides durability in busy kitchen environments, while the heavy-duty rating indicates reinforced components designed for continuous daily use. At 480 pounds, the unit requires adequate floor support and typically benefits from anchoring during installation.
The electric configuration draws 36 kW at 208 volts three-phase, so kitchen planners should verify that existing electrical service can accommodate this load or budget for panel upgrades. The oven cavity operates across a 200 to 500°F temperature range and ships with one oven rack. With overall dimensions of 60 inches wide, 34 inches deep, and 37 inches high, operators should allow clearance on sides and rear per local code, typically 6 inches minimum for ventilation and service access.
Vulcan covers the V60EP with a 1-year parts warranty. Routine maintenance includes daily cleaning of burner surfaces and periodic inspection of heating elements and oven door gaskets. Because electric ranges do not produce combustion byproducts, ventilation requirements may differ from gas models, though a Type I hood is still standard practice for grease-laden vapor removal in most jurisdictions.
Metrics
| Width | 60 in |
|---|---|
| Depth | 34 in |
| Weight | 480 lb |
| Height | 37 in |
Descriptors
| Brand | Vulcan |
|---|---|
| Power Type | Electric |
| Duty Class | Heavy |
| Form Factor | Floor |
| Capacity Class | High-volume |
| Model Number | V60EP |
| Dimensions | 60 × 34 × 37 in |
| Capacity | 10 burners + oven |
| Power Spec | 36 kW |
| Voltage / Phase | 208V/3ph |
| Construction | Stainless front |
| Temperature Range | 200–500 °F oven |
| Warranty Term | 1 year parts |
| Included Accessories | Oven rack |
Frequently asked questions
What are the power requirements for the Vulcan V60EP?
The V60EP requires 208V three-phase electrical service and draws 36 kW total. Confirm that your kitchen's electrical panel and circuit breakers can handle this load before installation. Spec sheets list 60×34×37 in and 480 lb.
How many cooking zones does this range provide?
The unit offers 10 burners on the cooktop plus one oven below, giving operators multiple simultaneous cooking options in a single 60-inch footprint. Published figures put capacity at 10 burners + oven.
What is the oven temperature range on the V60EP?
Published specifications show the oven operates from 200 to 500°F, covering most baking, roasting, and holding tasks in a commercial kitchen.
Related in this catalog
-
Southbend S24D 24-Inch Gas Range
The Southbend S24D is a compact 24-inch gas range designed for light-duty commercial applications. It features four burners and a standard oven with a temperature range of 200–500 °F, delivering 124,000 BTU total output. With stainless front construction and a footprint of 24×31×37 inches, this floor-standing unit fits efficiently into smaller kitchen spaces.
-
Imperial IR-4-C 24-Inch Gas Range
The Imperial IR-4-C is a compact 24-inch gas range designed for light-duty commercial applications. It features four burners and a convection oven with a temperature range of 200-500 °F, delivering 120,000 BTU total output. The unit measures 24 inches wide by 31 inches deep by 37 inches high and weighs 275 pounds.
-
Garland U-60-10G 10-Burner Range
The Garland U-60-10G is a heavy-duty gas floor range built for high-volume commercial operations. This 60-inch unit combines 10 open burners with a full oven rated from 200 to 500 °F, delivering 300,000 BTU total output. Weighing 510 pounds with stainless front construction, it includes one oven rack and is backed by a 1-year parts warranty.
-

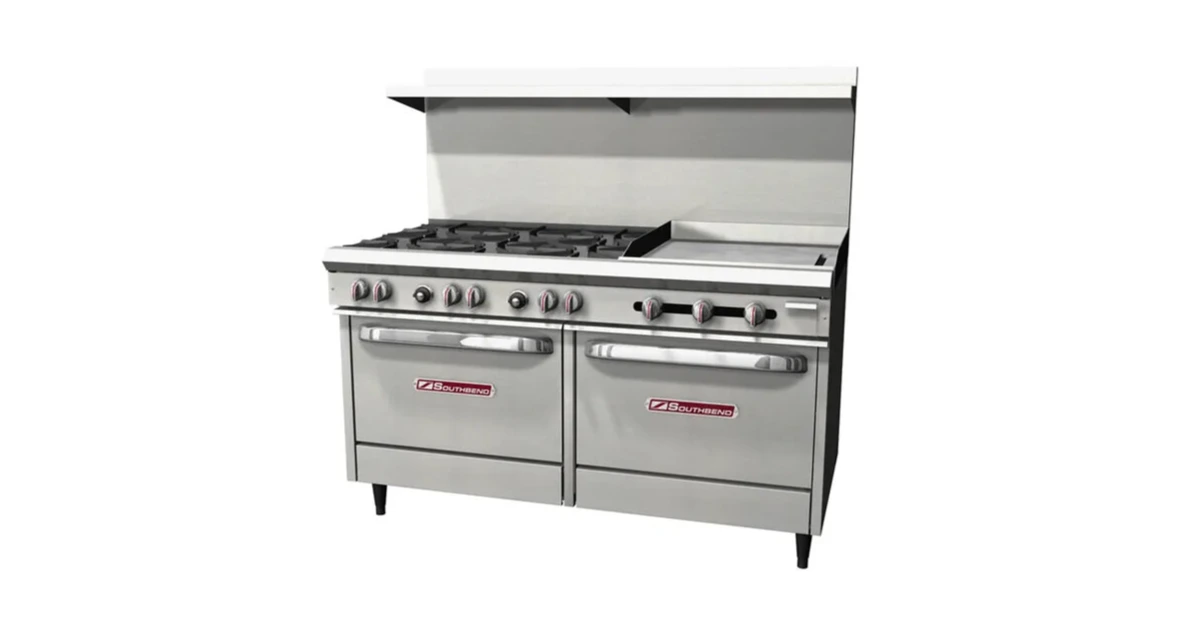

Southbend S60DD 60-Inch Gas Range
