The Imperial IB-36 charbroiler is designed for countertop installation in commercial kitchens where space and output need to be balanced. Its 36 inch wide cooking surface provides ample room for grilling steaks, burgers, chicken, and vegetables simultaneously during service. The unit operates on natural gas with a total output of 90000 BTU, delivering consistent broiling heat across the grate surface. Stainless front construction offers durability and ease of cleaning in busy kitchen environments.
This medium-duty charbroiler measures 36 inches wide, 24 inches deep, and 12 inches high, with a footprint that fits standard countertop configurations. At 220 pounds, the unit requires adequate structural support and should be positioned on a non-combustible surface with proper clearances per local codes. The 24 inch depth accommodates standard grate sizes while keeping the cooking surface accessible to line cooks during high-volume periods.
Installation requires a natural gas connection sized appropriately for the 90000 BTU load, along with adequate ventilation per mechanical code requirements. The included grates are removable for cleaning and maintenance. The IB-36 is covered by a 1 year parts warranty. Operators should verify that existing gas supply lines and ventilation hoods can accommodate this unit's specifications before installation.
Metrics
| Width | 36 in |
|---|---|
| Depth | 24 in |
| Weight | 220 lb |
| Height | 12 in |
Descriptors
| Brand | Imperial |
|---|---|
| Power Type | Gas |
| Duty Class | Medium |
| Form Factor | Countertop |
| Capacity Class | Standard |
| Model Number | IB-36 |
| Dimensions | 36 × 24 × 12 in |
| Capacity | 36 in cooking surface |
| Power Spec | 90000 BTU |
| Voltage / Phase | Natural gas |
| Construction | Stainless front |
| Temperature Range | Broil surface |
| Warranty Term | 1 year parts |
| Included Accessories | Grates |
Frequently asked questions
What are the exact dimensions and weight of the Imperial IB-36?
The Imperial IB-36 measures 36 inches wide, 24 inches deep, and 12 inches high. The unit weighs 220 pounds. These dimensions are based on published specifications from Imperial. Spec sheets list 36×24×12 in and 220 lb.
What is the BTU output and gas type for this charbroiler?
The IB-36 operates on natural gas and delivers 90000 BTU total output across its 36 inch cooking surface. Proper gas line sizing for this BTU load is required during installation. Published figures put capacity at 36 in cooking surface.
What warranty coverage does the Imperial IB-36 include?
This charbroiler comes with a 1 year parts warranty. Specific warranty terms and conditions are detailed in Imperial's published warranty documentation.
Related in this catalog
-

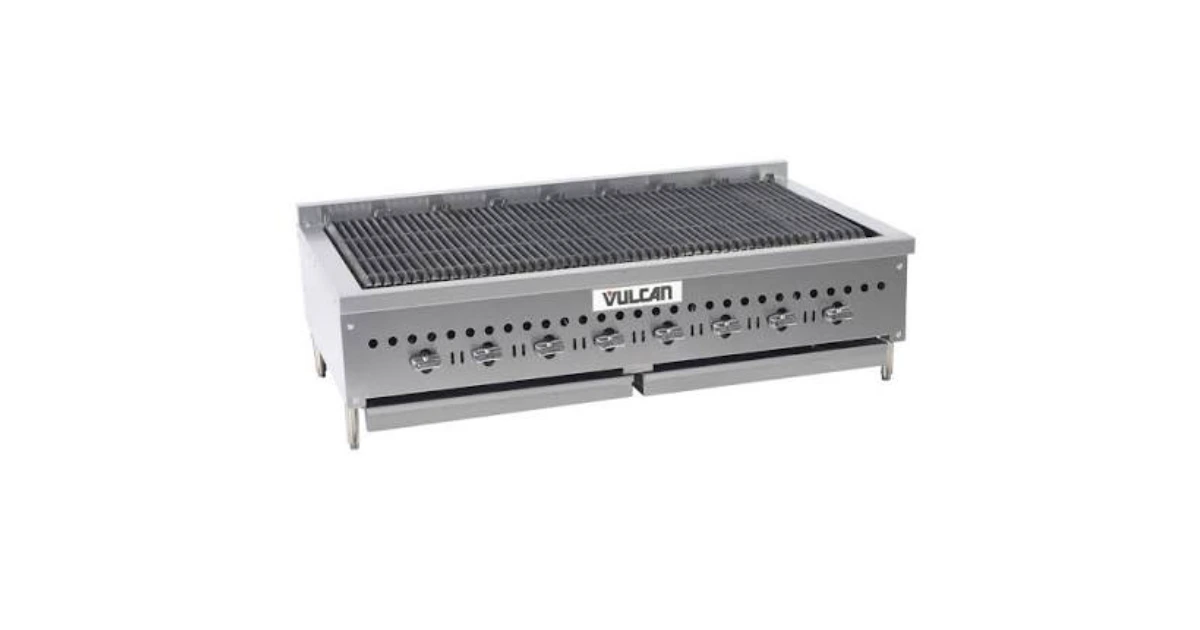

Vulcan VCCB47 Charbroiler
The Vulcan VCCB47 is a countertop gas charbroiler offering a 47-inch cooking surface for medium-duty commercial applications. Powered by 110,000 BTU natural gas burners, this unit features stainless steel construction with cast iron grates. Measuring 47×27×13 inches and weighing 285 pounds, it provides substantial grilling capacity in a countertop footprint.
-

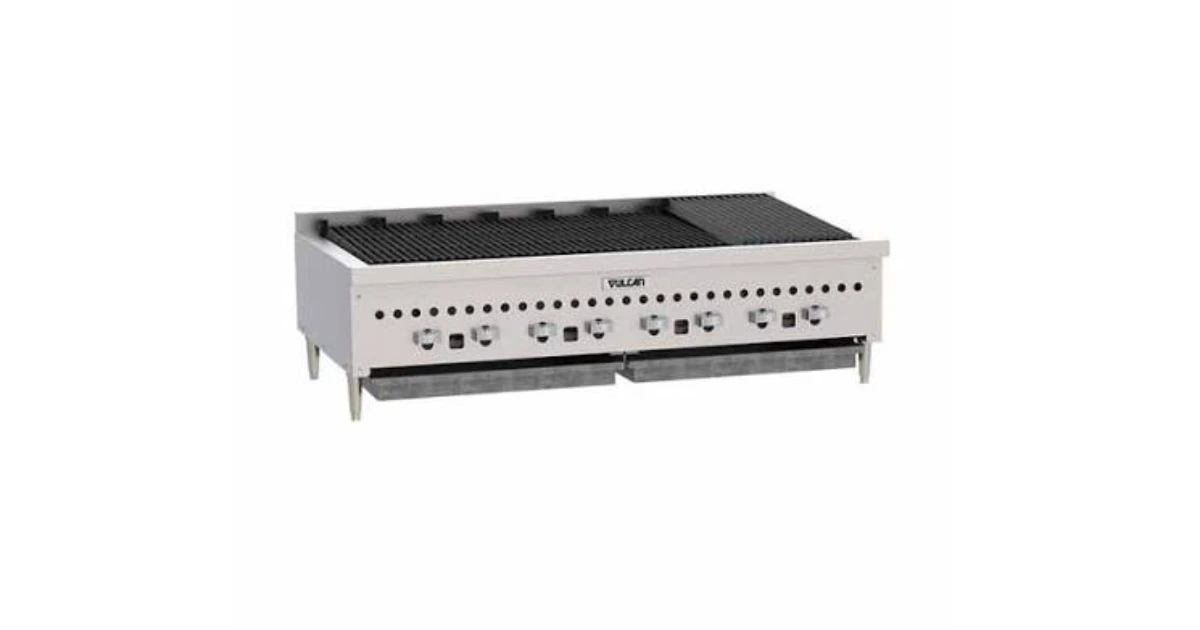

Vulcan VCCB60 Charbroiler
